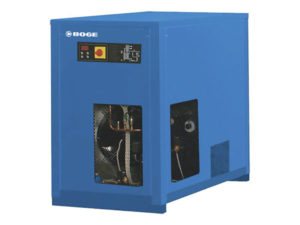

DS120 – DS1800 Series

Flow capacity: 12.00 – 180 m³/min, 720 – 6356 cfm

Max. operating pressure: 14 bar, 203 psig

Compressed air drying can be so convenient: Due to the effective control, this series enables absolutely cost-efﬁcient compressed air drying. Their extremely low pressure loss due to the generously designed components prevents overcompression. Compressor energy savings of six percent are achieved for every bar of pressure saved. Displaying energy use helps the operator to fully exploit the greatest saving potential – and arrive at the most efﬁcient way to obtain dry compressed air.

BOGE	Flow capacity			Max pressure	Pressure differential at full load		Electr. power consumption		Installed power		Compressed air connection	Cooling air required		Dimensions W x D x H	Weight
Type	m³/min	m³/h	cfm	bar	bar	psig	kW	HP	kW	HP		m³/h	cfm	mm	kg
DS 120	12	720	424	14	0,13	1,89	1,13	1,54	2,38	3,42	G 2	2800	1646	706x1046x1064	145
DS 140	14	840	494	14	0,18	2,61	1,14	1,55	2,38	3,42	G 2	2800	1646	706x1046x1064	145
DS 180	18	1080	636	14	0,23	3,34	1,46	1,99	3,02	4,11	G 2	4000	2352	706x1046x1064	155
DS 220	22	1320	777	14	0,09	1,31	1,68	2,28	3,41	4,64	G 2 1/2	7050	4145	806x1166x1316	230
DS 260	26	1560	918	14	0,13	1,89	2,19	2,98	4,47	6,08	G 2 1/2	7050	4145	806x1166x1316	240
DS 300	30,17	1810	1065	14	0,17	2,47	2,41	3,28	5,27	7,17	G 2 1/2	7050	4145	806x1166x1316	245
DS 350	35	2100	1236	14	0,24	3,48	3,06	4,16	6,26	8,51	G 2 1/2	7050	4145	806x1166x1316	250
DS 460	46	2760	1624	14	0,14	2,03	3,14	4,27	6,26	8,51	DN 100	7050	4145	1007x1245x1723	470
DS 520	52	3120	1836	14	0,18	2,61	3,54	4,81	7,46	10,15	DN 100	7050	4145	1007x1245x1723	490
DS 630	63	3780	2225	14	0,26	3,77	4,64	6,31	9,92	13,49	DN 100	14100	8291	1007x1657x1810	580
DS 750	75	4500	2648	14	0,16	2,32	5,73	7,79	11,32	15,4	DN 150	14100	8291	1007x1657x1810	670
DS 900	90	5400	3178	14	0,23	3,34	7,63	10,38	16,26	22,11	DN 150	19000	11172	1007x1657x1810	690
DS 1200	120	7200	4237	14	0,23	3,34	8,92	12,13	19,26	26,19	DN 150	19000	11172	1007x1657x1807	830
DS 1500	150	9000	5297	14	0,2	2,9	12,35	16,8	25,64	34,87	DN 200	28500	16758	1007x2257x2208	1100
DS 1800	180	10800	6356	14	0,26	3,77	15,96	21,71	31,04	42,21	DN 200	28500	16758	1007x2257x2208	1190
