DACZ Series

DACZ 4-2 – DACZ 1021 Series

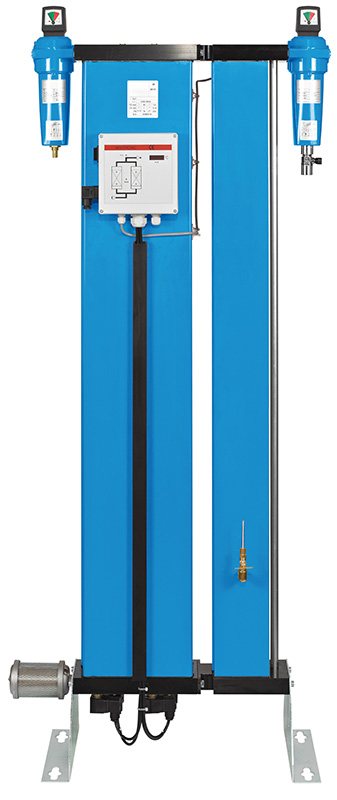

Adsorption dryer units DACZ 4-2 to DACZ 161-2:

the DAZ-2 adsorption dryer combined with a DCZ-2 activated carbon adsorber

Flow capacity: 8 – 6100 m³/h, 5 – 3587 cfm

Max. operating pressure: 10 bar and 16 bar, 150 and 230 psig

The all-in one package for dry compressed air: The ideal solution for compressed air pressure dew points below +3°C. The heatless BOGE adsorption dryers can reach dew points of -70°C (standard -40°C). The twin tower system allows regeneration simultaneously with the adsorption eliminating the need for any external power supply.

BOGE	Capacity		Dimensions	Connection	Weight
Type	m³/h	cfm	W x D x H mm	Connection	kg
DACZ 4-2	8	5	459 x 225 x 400	G 1/4	15
DACZ 5-2	15	9	459 x 225 x 575	G 1/4	20
DACZ 6-2	25	15	459 x 225 x 825	G 1/4	28
DACZ 8-2	35	21	459 x 225 x 1075	G 1/4	35
DACZ 9-2	56	33	685 x 300 x 1430	G 1/2	68
DACZ 11-2	72	42	685 x 300 x 1205	G 1/2	81
DACZ 14-2	86	50	685 x 300 x 1630	G 3/4	92
DACZ 18-2	105	62	1140 x 467 x 1070	G 1	161
DACZ 26-2	145	85	1140 x 467 x 1320	G 1	193
DACZ 36-2	200	118	920 x 490 x 1730	G 1	193
DACZ 46-2	255	150	940 x 530 x 1760	G 11/2	234
DACZ 61-2	350	206	1220 x 585 x 1810	G 11/2	283
DACZ 71-2	420	247	1250 x 605 x 1820	G 11/2	334
DACZ 101-2	620	365	1310 x 635 x 1870	G 2	428
DACZ 126-2	750	441	1450 x 635 x 2000	G 2	555
DACZ 161-2	940	553	1500 x 670 x 2020	G 21/2	698
